In geotechnical and structural foundation engineering, building upon unstable, saturated, or low-bearing-capacity soils presents a severe structural challenge. When expansive smectite clays, loose tidal sands, or uncontrolled artificial fills dominate a project site, shallow continuous spread footings or floating mat slabs become vulnerable to severe differential settlement.
Historically, deep foundation remediation relied on driven timber piles, large-diameter drilled concrete shafts (caissons), or driven steel H-piles. However, high vibration levels near adjacent structures, spoils disposal costs, and the need for heavy rotary drilling rigs make conventional deep foundations cost-prohibitive on congested commercial sites.
Modern geotechnical contractors resolve these limitations through engineered helical piles (also designated as helical screw piles, helical piers, or torque anchors). By transforming rotational torque into axial bearing capacity, helical foundation systems provide verified deep foundation support with zero spoils, rapid installation, and instantaneous load-bearing readiness.
1. Geotechnical Mechanics: Individual Plate Bearing vs. Cylinder Shear
A helical pile consists of a central structural steel shaft—either hollow structural round pipe (HSS) or high-yield solid square steel—fitted with one or more true-helical steel bearing plates (flights) stamped with a uniform pitch (typically 3 inches). As the shaft is rotated into the soil via a high-torque hydraulic motor, the helical plates advance into the earth with minimal structural disturbance to the surrounding soil matrix.
The ultimate axial load capacity of a helical pile is derived through two distinct geotechnical calculation methodologies:
A. The Individual Bearing Method
The individual bearing method assumes that the total ultimate compressive capacity (Q_ult) is the direct sum of the end-bearing capacities of each individual helical plate, plus negligible skin friction along the central shaft:
Q_ult = Σ [ A_h × q_u ] = Σ [ A_h × ( c × N_c + q' × N_q + 0.5 × γ × B × N_γ ) ]
Where:
- A_h: The surface projected area of each individual helical bearing plate (sq ft).
- q_u: The ultimate unit bearing capacity of the soil stratum supporting each specific plate (psf).
- c: Soil cohesion (undrained shear strength, s_u).
- q’: Effective vertical overburden pressure at the plate depth.
- N_c, N_q, N_γ: Terzaghi or Meyerhof bearing capacity factors modified for deep circular plates (typically N_c = 9.0 in saturated cohesive clays).
B. The Torque-to-Capacity Correlation (Empirical Method)
The most significant engineering advantage of helical foundation piles over driven precast concrete or auger-cast piles is the continuous, real-time feedback provided by installation torque. As a pile penetrates deeper into denser soil strata, the hydraulic pressure required to rotate the shaft increases proportionally.
Per ICC-ES AC358 (Acceptance Criteria for Helical Pile Systems), ultimate geotechnical capacity correlates to installation torque through the empirical formula:
Q_ult = K_t × T
Where:
- Q_ult: Ultimate geotechnical axial capacity (lbs or kN).
- K_t: Empirical torque correlation factor (ft⁻¹ or m⁻¹), calibrated to the shaft geometry.
- T: Final average installation torque measured over the last 3 feet of penetration (ft-lbs).
| Shaft Type & Geometry | Outside Diameter (OD) / Size | Empirical K_t Factor | Max Mechanical Torque Rating | Typical Working Load (Compression) |
|---|---|---|---|---|
| Solid Square Shaft | 1.50″ Square (Type SS5) | 10.0 ft⁻¹ | 5,700 ft-lbs | 25 – 30 kips (110 – 133 kN) |
| Solid Square Shaft | 1.75″ Square (Type SS175) | 10.0 ft⁻¹ | 10,500 ft-lbs | 45 – 55 kips (200 – 245 kN) |
| Round Hollow Pipe (HSS) | 2.875″ OD × 0.203″ Wall | 9.0 ft⁻¹ | 8,000 ft-lbs | 35 – 40 kips (155 – 178 kN) |
| Round Hollow Pipe (HSS) | 3.500″ OD × 0.300″ Wall | 7.0 ft⁻¹ | 14,000 ft-lbs | 50 – 65 kips (222 – 289 kN) |
| Heavy Pipe Helical (HSS) | 4.500″ OD × 0.337″ Wall | 6.0 ft⁻¹ | 24,000 ft-lbs | 70 – 90 kips (311 – 400 kN) |
Engineering Rule: Hollow round shafts are selected when the structural engineer requires lateral shear resistance and buckling resistance in soft surficial soils. Solid square shafts are selected when dense rocky soils or glacial tills require high torsional penetration to punch down to refusal bedrock.

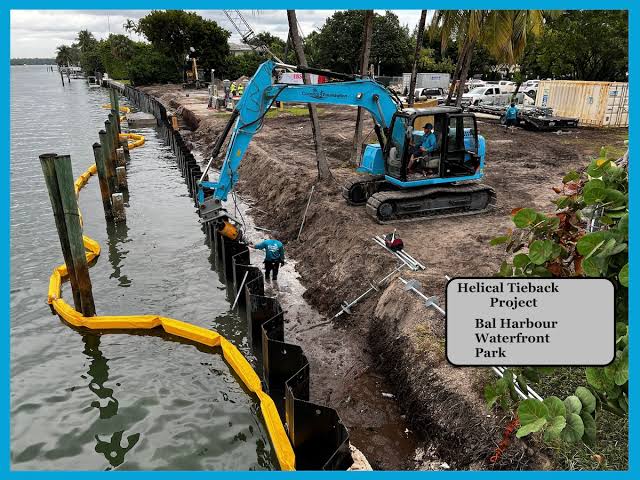

2. Helical Tiebacks for Lateral Earth Retention and Shoring
Beyond vertical compressive support, helical technology provides high lateral tension resistance when configured as helical tieback anchors. In civil shoring walls, sheet-pile bulkheads, basement retaining structures, and failed seawalls, lateral hydrostatic and active earth pressures exert rotational bending moments on the vertical wall.
Helical tiebacks are driven through the face of the retaining wall at an inclined angle (typically 15 to 30 degrees below horizontal) until the helical bearing plates pass beyond the active soil failure wedge (Rankine failure plane) and anchor deeply into the passive resistance zone.
The Anchor Load Test Sequence (ASTM D3689)
Every structural tieback is proof-tested in tension immediately after installation using an annular hollow-ram hydraulic jack reacting against the structural wall:
- Alignment Load (AL): Apply an initial 10% load to eliminate mechanical slack in the waler bracket.
- Incremental Proof Test: Load the tieback in steps (25%, 50%, 75%, 100%, and 125% of design working load). Hold each load stage while measuring head deflection with digital dial indicators.
- Creep Measurement: Hold the maximum test load for 10 minutes. If the total head movement between 1 and 10 minutes exceeds 0.040 inches (1.0 mm), hold the load for an additional 50 minutes. If creep movement exceeds 0.080 inches, the anchor is derated.
- Lock-Off: Release test pressure down to the specified transfer load (typically 60% to 80% of design capacity) and lock the high-strength hex nut against the structural bearing plate.
3. Comprehensive Helical Pile Cost Breakdown (2026 Price Index)
Helical pile contracting is priced using two primary formats: turnkey per-pier pricing (common for underpinning residential and light commercial grade beams) or linear-foot schedule pricing (standard for large-scale commercial civil projects and transmission towers).
| Helical Pile Specification | Average Cost per Pier | Cost per Linear Foot | Typical Applications & Scope Drivers |
|---|---|---|---|
| Light Commercial / Residential (2.875″ Round) | $1,800 – $2,600 | $45 – $65 / LF | Slab stabilization, column pads, depth down to 30 ft. Includes foundation lift bracket. |
| Structural Underpinning (3.50″ Round Heavy) | $2,400 – $3,600 | $60 – $85 / LF | Commercial grade beams, masonry buildings, depths 30 to 60 ft. Proof tested. |
| Solid Square High-Torque (1.75″ Square) | $2,200 – $3,200 | $55 – $75 / LF | Penetrating dense gravelly tills and fractured shale; high torsion capacity. |
| High-Capacity Commercial (4.50″ Round) | $3,800 – $6,200 | $85 – $130 / LF | Heavy steel moment frames, industrial machinery foundations (80+ ton capacity). |
| Helical Tieback Lateral Anchor (Tension) | $2,200 – $3,800 | $65 – $95 / LF | Retaining wall shoring, sheet-pile sea walls, includes thread-bar waler adapter. |
Operational Line-Item Cost Drivers
- Mobilization of Heavy Excavator & Torque Drive: Billed at $2,500 to $6,500 for mobilizing a 15- to 30-ton tracked excavator equipped with a calibrated 15,000+ ft-lb hydraulic rotary drive head.
- Depth to Refusal Variability: If geotechnical borings miss deep localized bedrock valleys, driving a pile from 30 feet down to 60 feet adds $45 to $85 per additional linear foot in steel extensions, mechanical couplers, and labor.
- Hot-Dip Galvanization (ASTM A123): Plain black steel degrades in low-resistivity, highly acidic soils. Specifying a full hot-dip galvanized coating (minimum 3.9 mils / 2.3 oz/ft² zinc coating) adds a 15% to 22% premium to raw steel material expenses.
4. QA/QC Field Testing: Verification of Load Capacity
Unlike driven piles where dynamic formulas (such as the ENR formula) provide rough estimates, helical foundation systems provide verified field documentation:
Continuous Torque Logging
Contractors record continuous torque using electronic wireless torque transducers mounted inline between the excavator drive head and the pile adapter (e.g., TruLink or Digi-Tork systems). This equipment records hydraulic differential pressure, rotational speed, and instantaneous torque at 1-foot penetration intervals. The resulting digital log is submitted to the Structural Engineer of Record as physical proof that every installed pile reached its target capacity.
Full-Scale Static Axial Compression Load Testing (ASTM D1143)
On large commercial and industrial projects, building codes require executing at least one full-scale static load test per 100 installed production piles:
- A sacrificial test pile is driven to the design target depth.
- A structural steel reaction frame is erected over the test pile, secured by four adjacent production or reaction helical anchors.
- A calibrated hydraulic jack applies compressive loads in increments up to **200% of the design working load** (Factor of Safety = 2.0).
- Settlement is monitored using digital LVDT displacement gauges mounted on an independent reference beam.
- Acceptance Standard (Davisson Criteria): Total net plastic settlement after load release must not exceed 0.25 inches (6 mm).
5. Commercial Subcontractor Vetting Framework
Helical piles cannot be inspected visually once embedded in the ground. Hiring a qualified specialty geotechnical contractor is essential to prevent foundation failure. Enforce this evaluation matrix:
- ICC-ES Evaluation Reports: Verify that the manufacturer’s pile system holds an active ICC-ES ESR report (such as ESR-2794 or ESR-3075) confirming compliance with the International Building Code (IBC Section 1810).
- Calibrated Inline Torque Transducers: Reject contractors who estimate torque solely by looking at generic hydraulic pressure gauges inside the excavator cab. Demand calibrated inline electronic transducers with direct digital data-logging.
- Welder Certifications (AWS D1.1): If high-capacity pipe piles require field welding of shaft extensions rather than bolted couplings, confirm that all installation welders hold active AWS D1.1 structural steel certifications.
- Geotechnical Engineering Stamped Submittals: The contractor’s submittal package must include structural calculations signed and sealed by a registered Professional Engineer (PE) licensed in the project’s jurisdiction, specifying shaft wall thickness, helix configuration, and corrosion life projections (per ACI 318 and IBC 1810.5.1).
